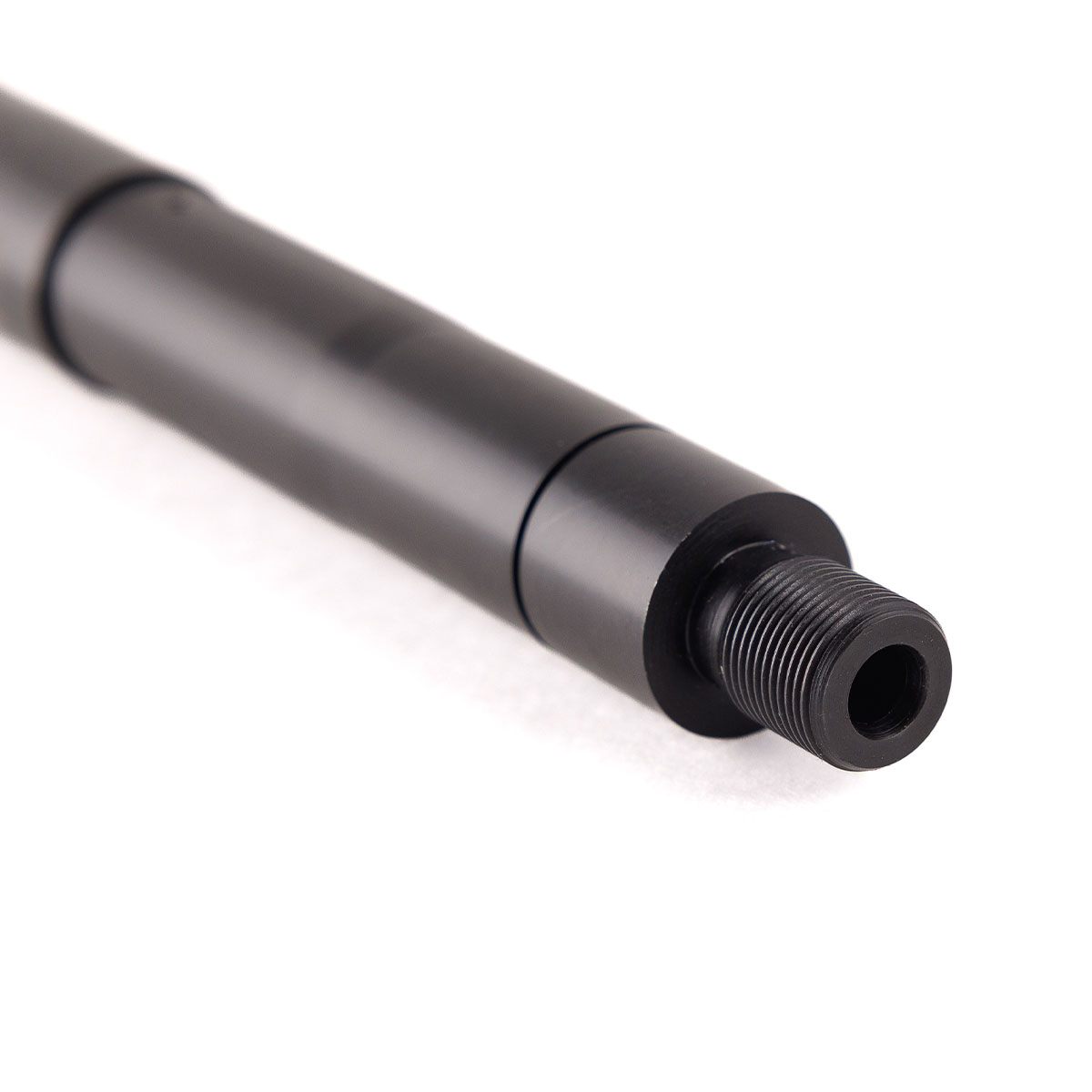

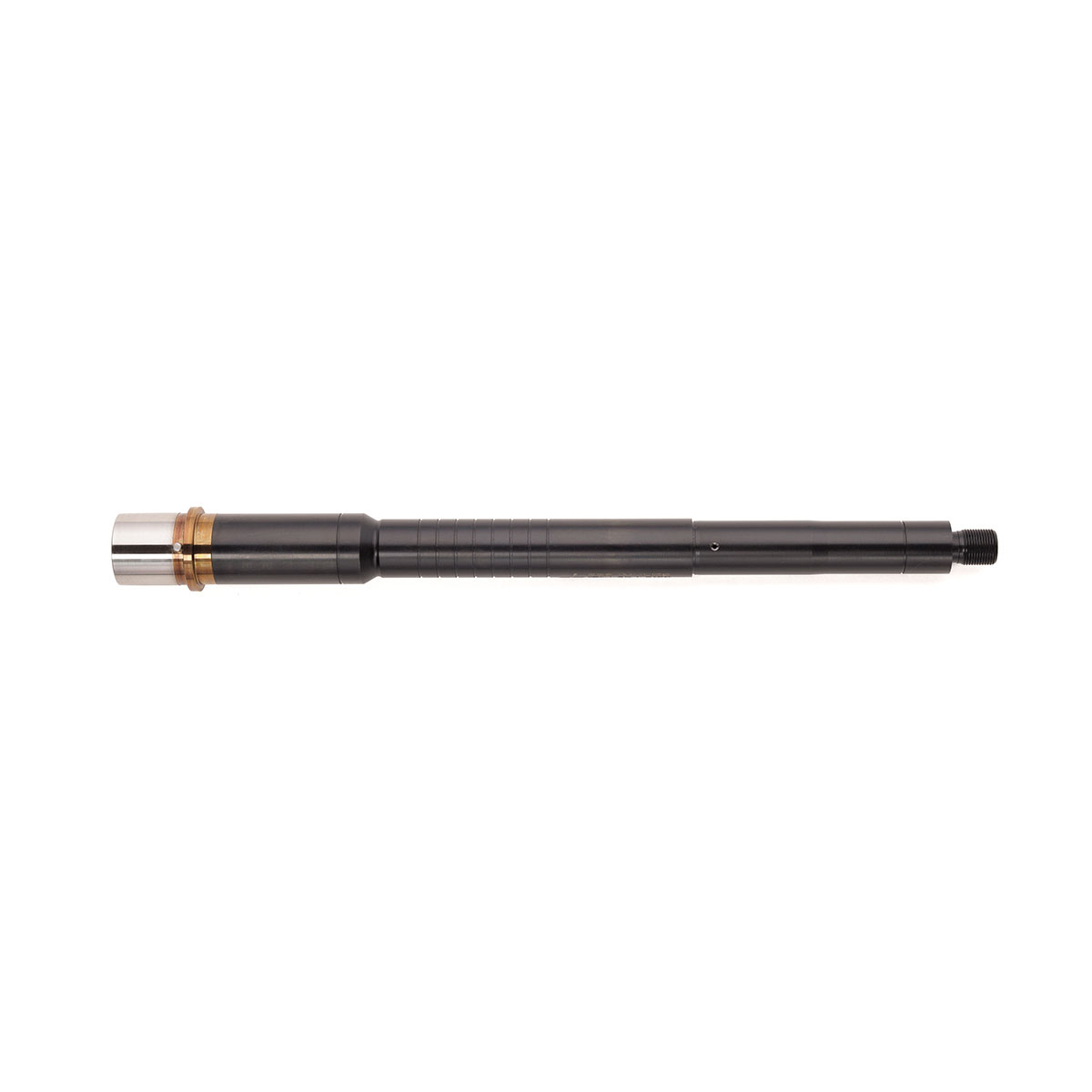

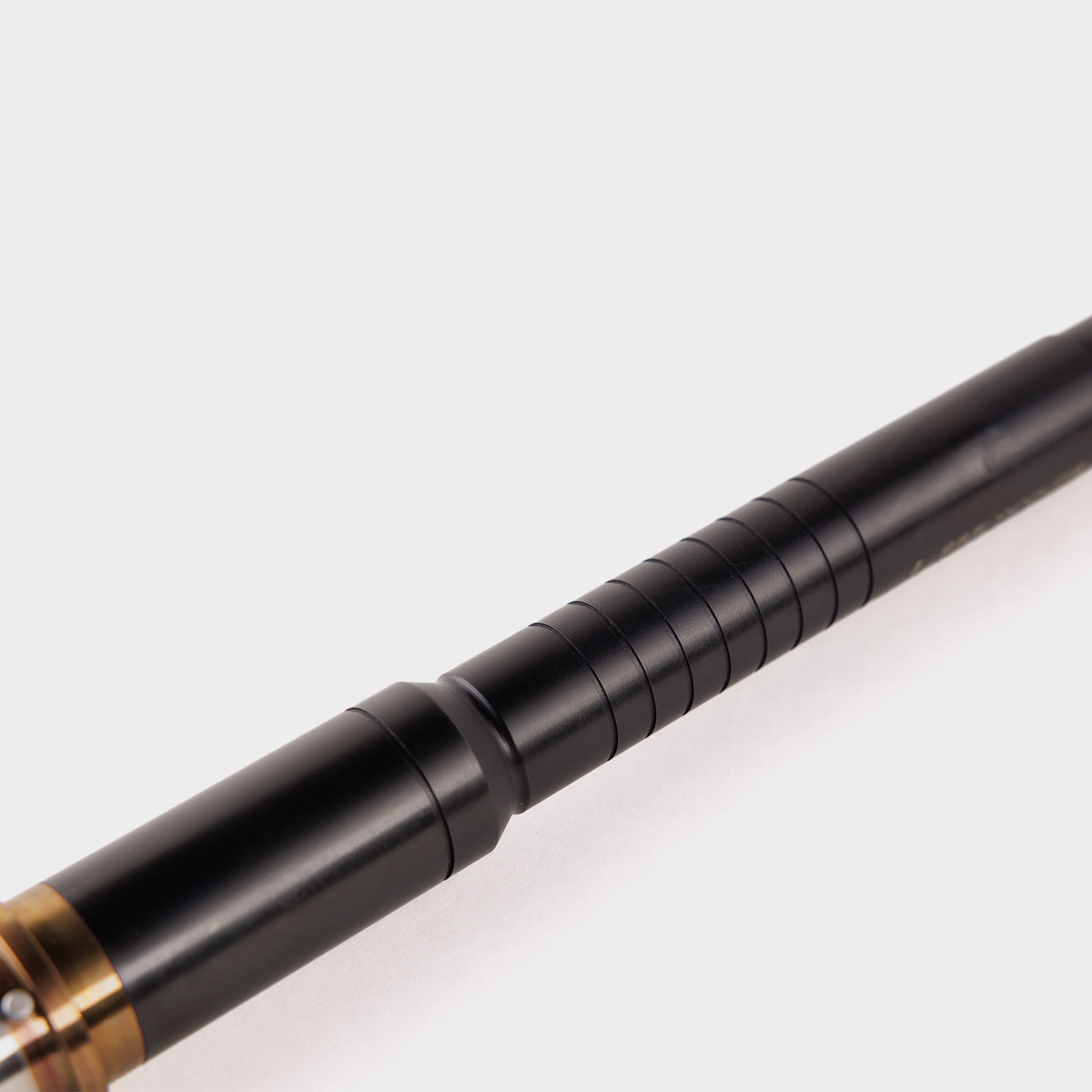

.223 Wylde Gold Ring Barrel

*Barrels are assembled to order, and ship in 1-2 weeks

Our Gold Ring barrels offer core performance and enhanced interface geometry without added components. Each barrel features our enhanced barrel extension with extended thread engagement and dedicated feed ramps, which are subtle but critical upgrades offering increased reliability and improved feeding.

Note: No gas block or gas system components included. Perfect for those pairing with their own adjustable blocks or unique setups.

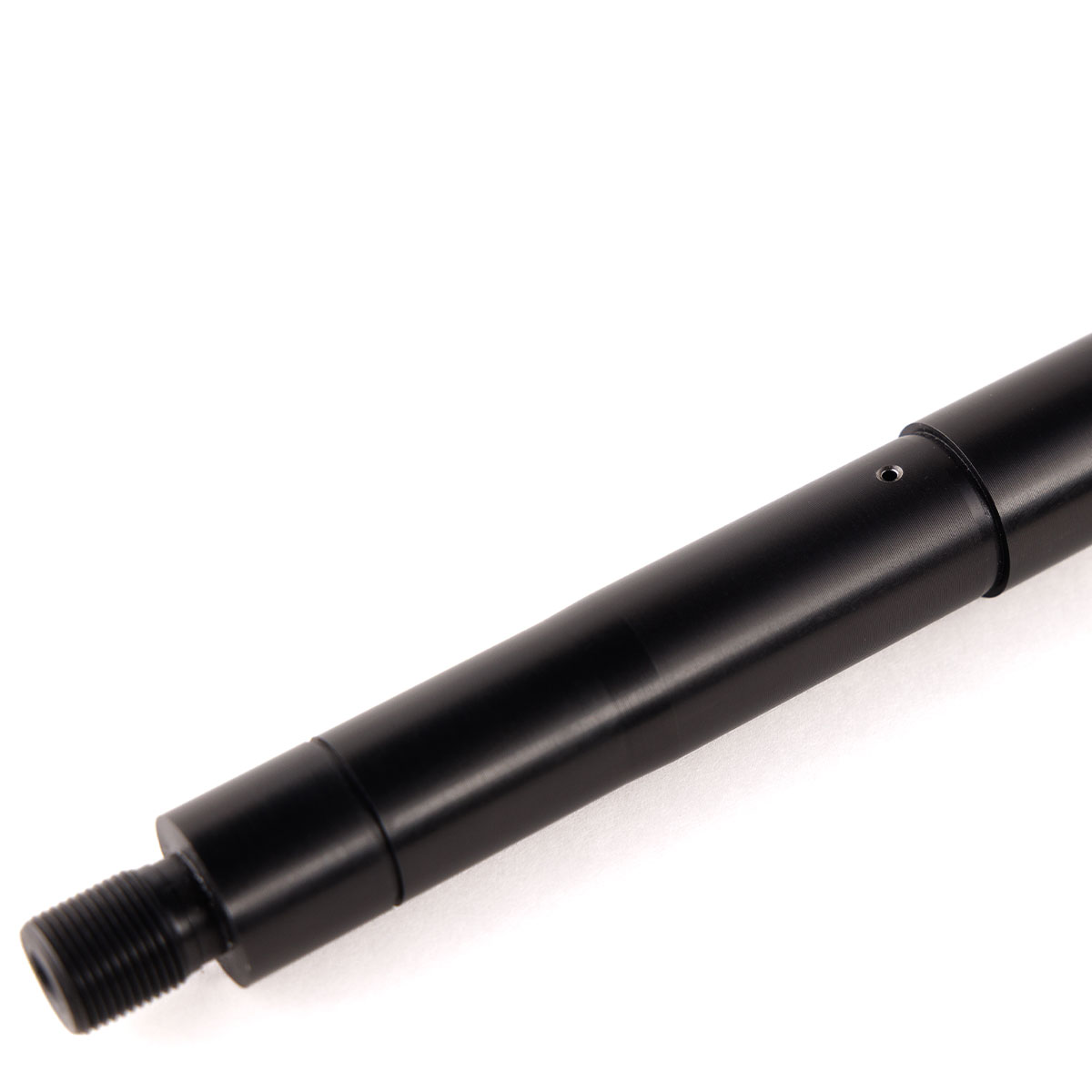

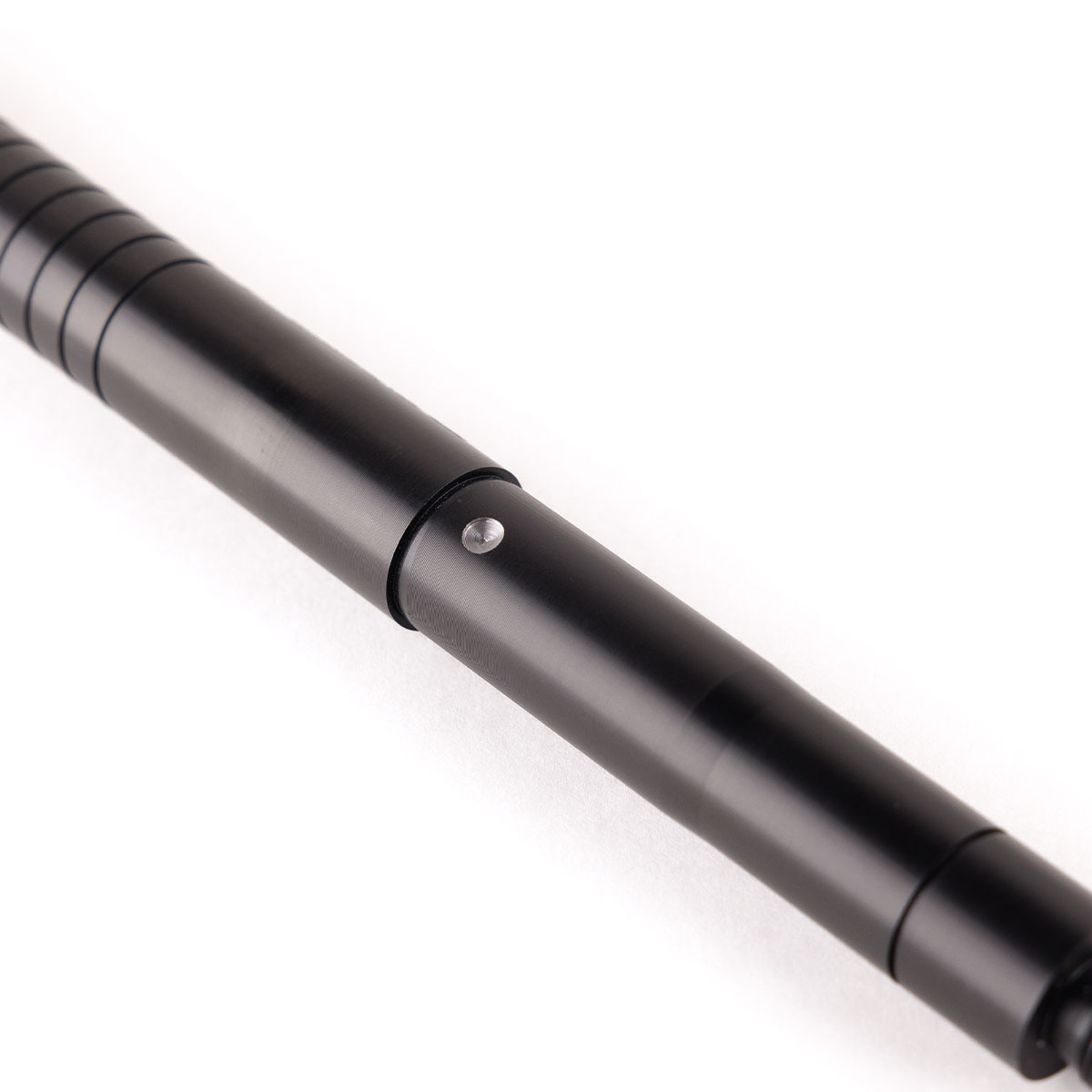

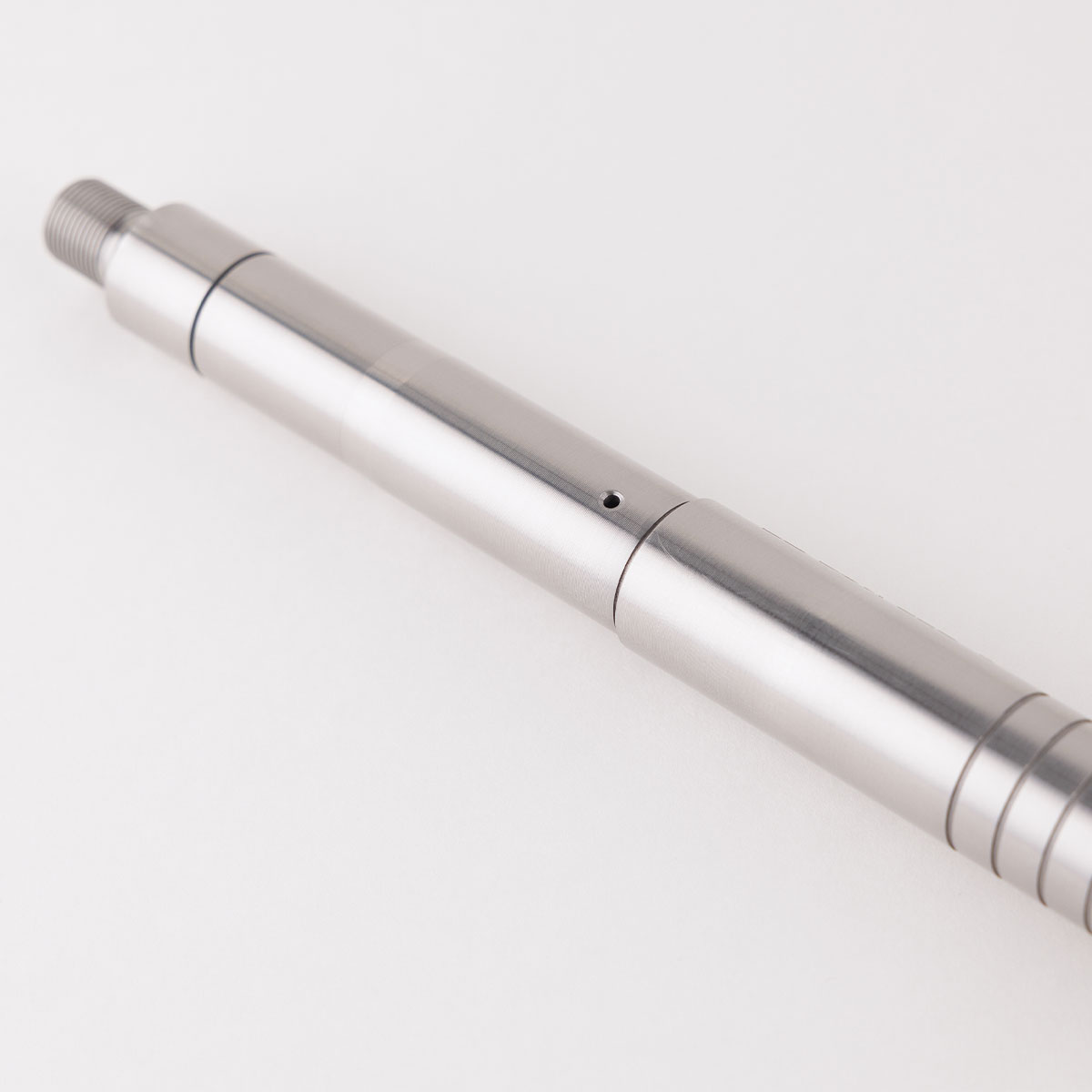

The gas port diameter for our gas system barrels is as follows:

• 11.5″ Carbine:  0.0785” gas port diameter
• 12.5″ Carbine+1:  0.0820” gas port diameter
• 13.9″ Midlength:  0.0820” gas port diameter
• 14.5″ Midlength:  0.0820” gas port diameter

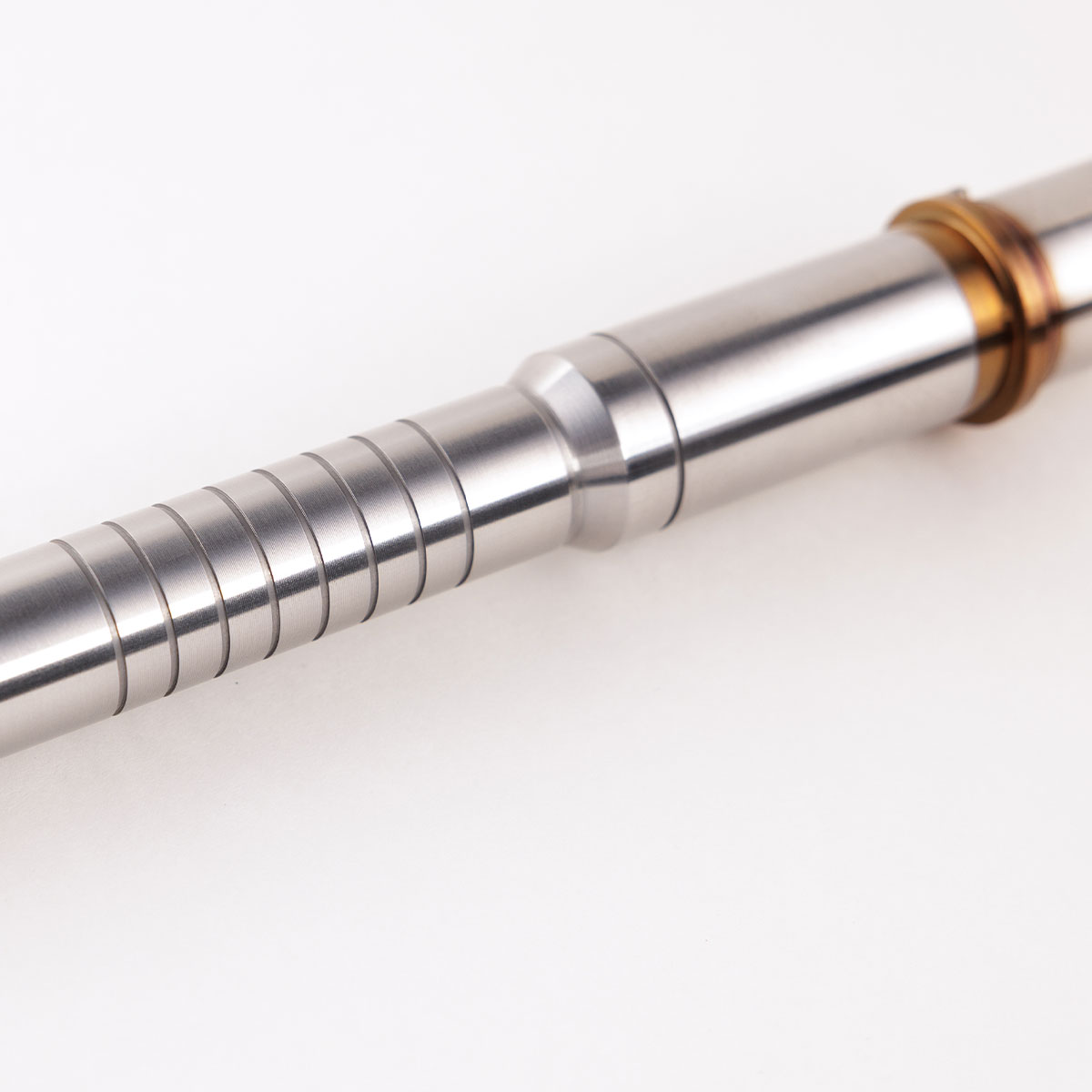

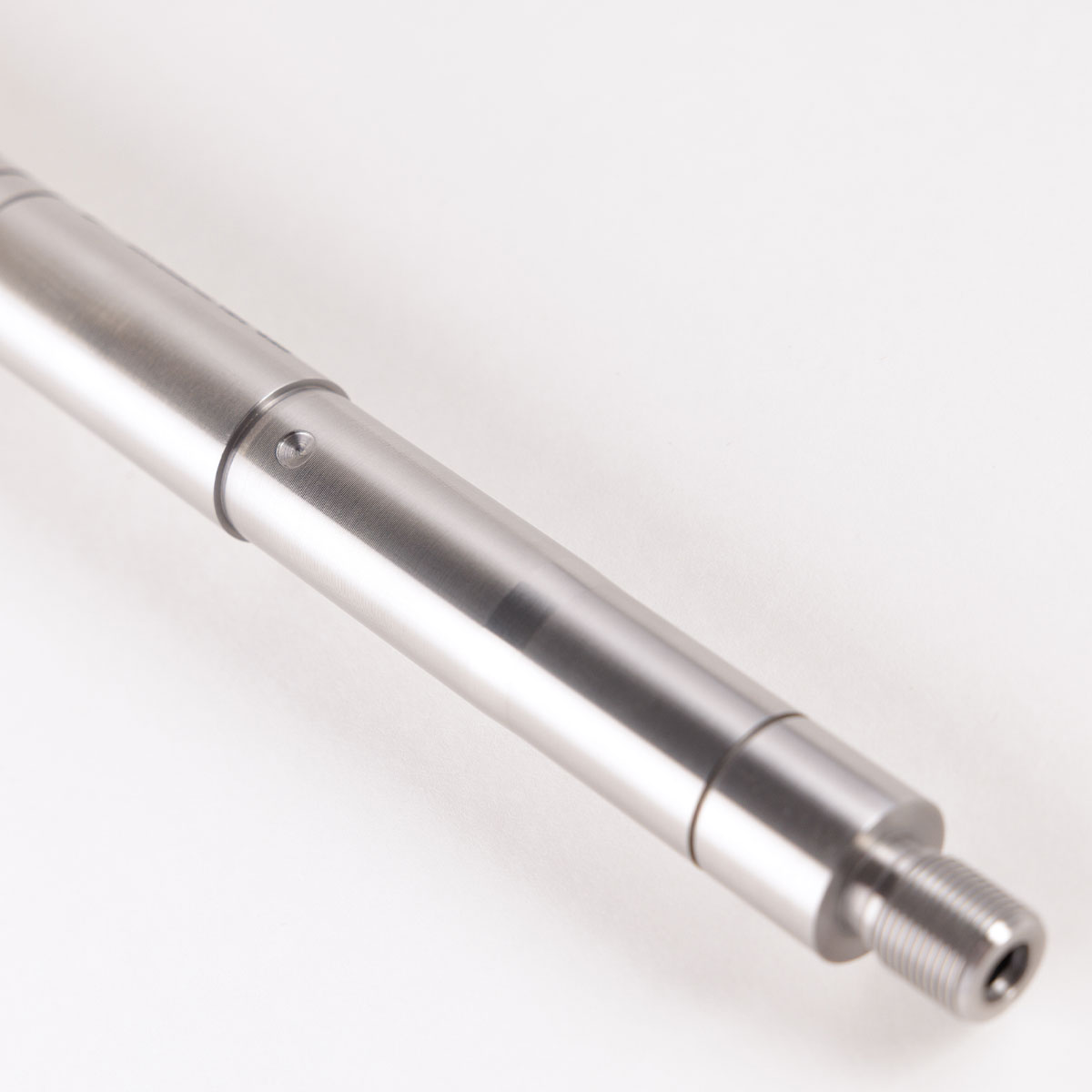

Our 416R stainless steel barrels are precision machined in house with our state-of-the-art manufacturing equipment and best-in-class chambering tools. Our internal acceptable run-out from extension to muzzle on our barrels is 3x tighter than the mil-spec allowable tolerances, resulting in improved accuracy and performance.

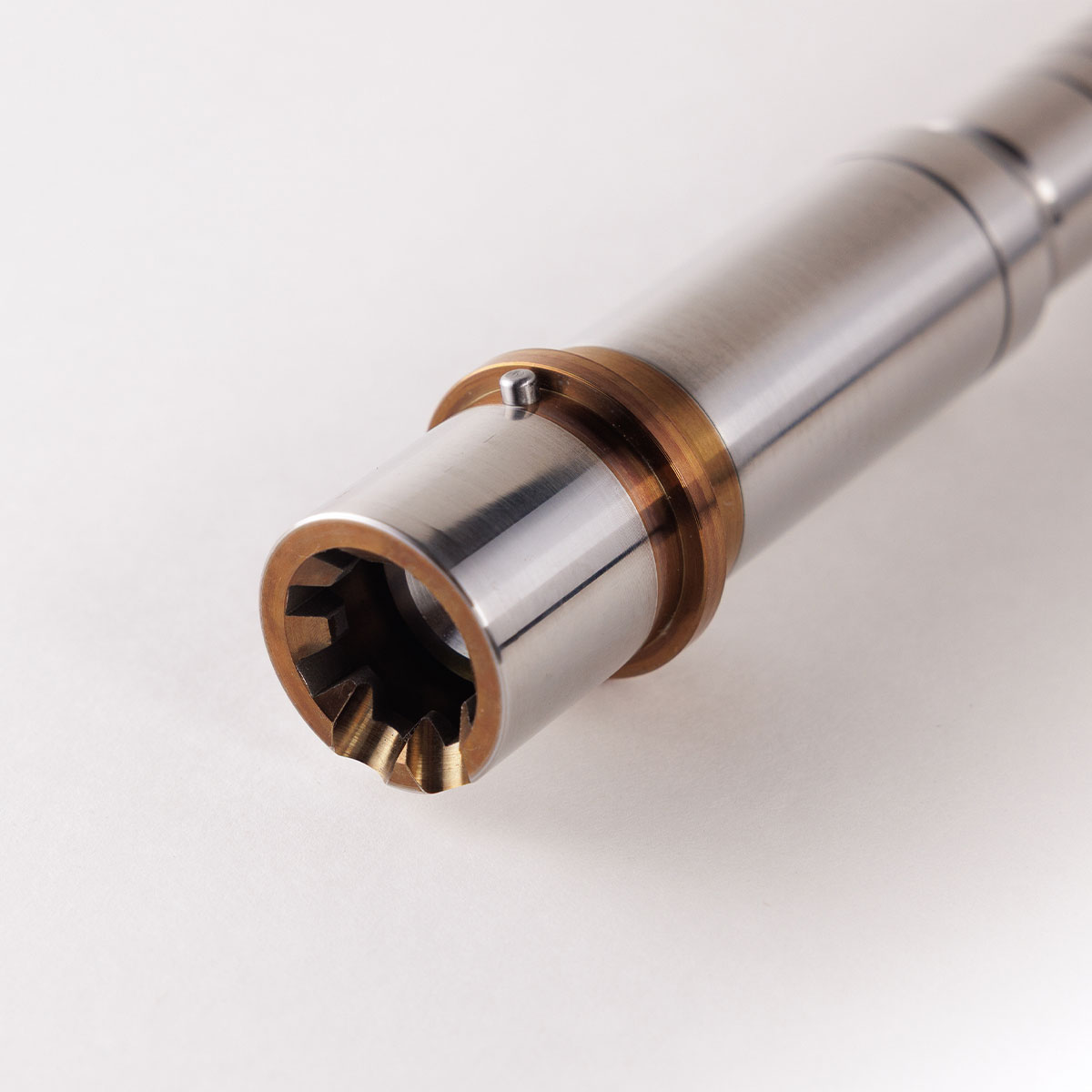

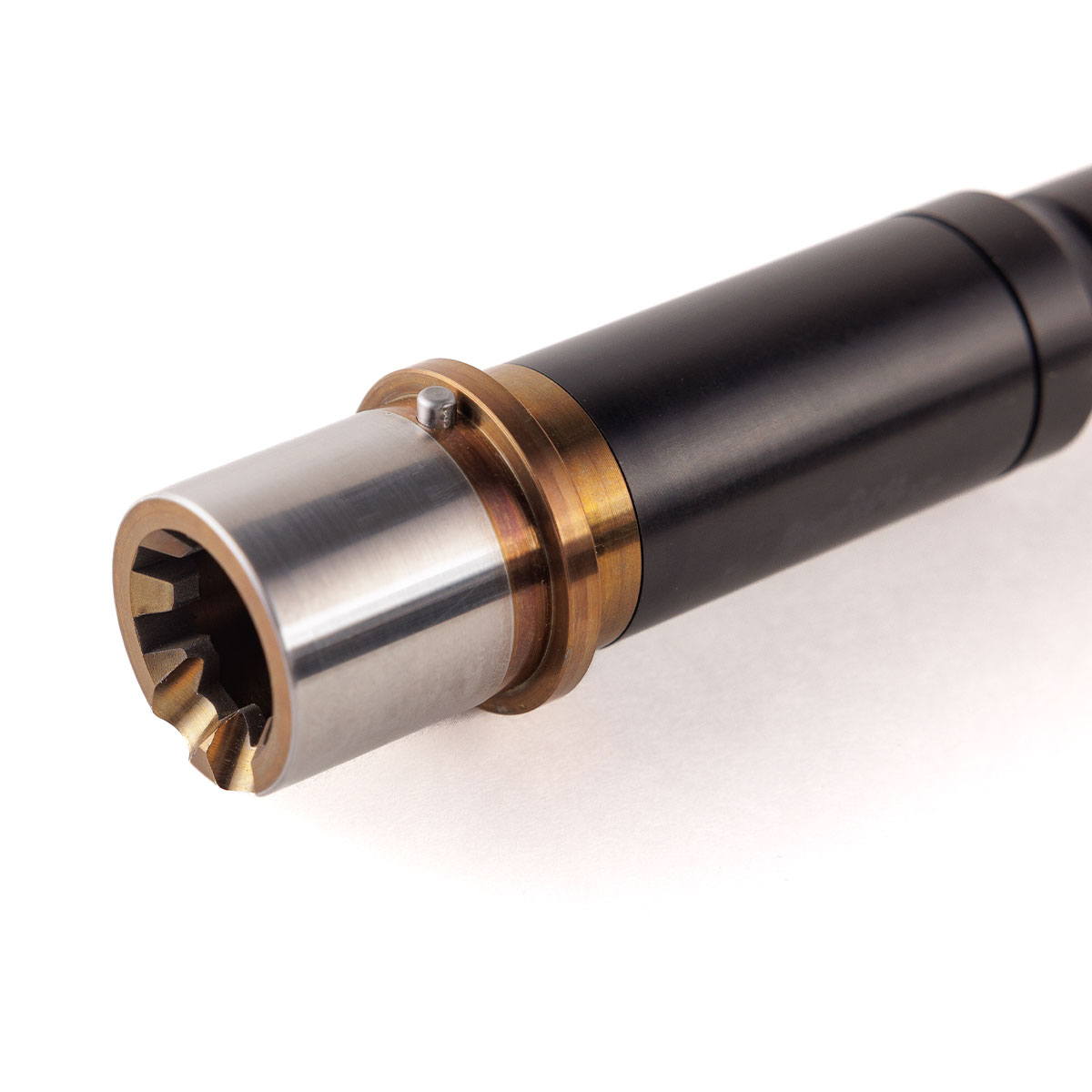

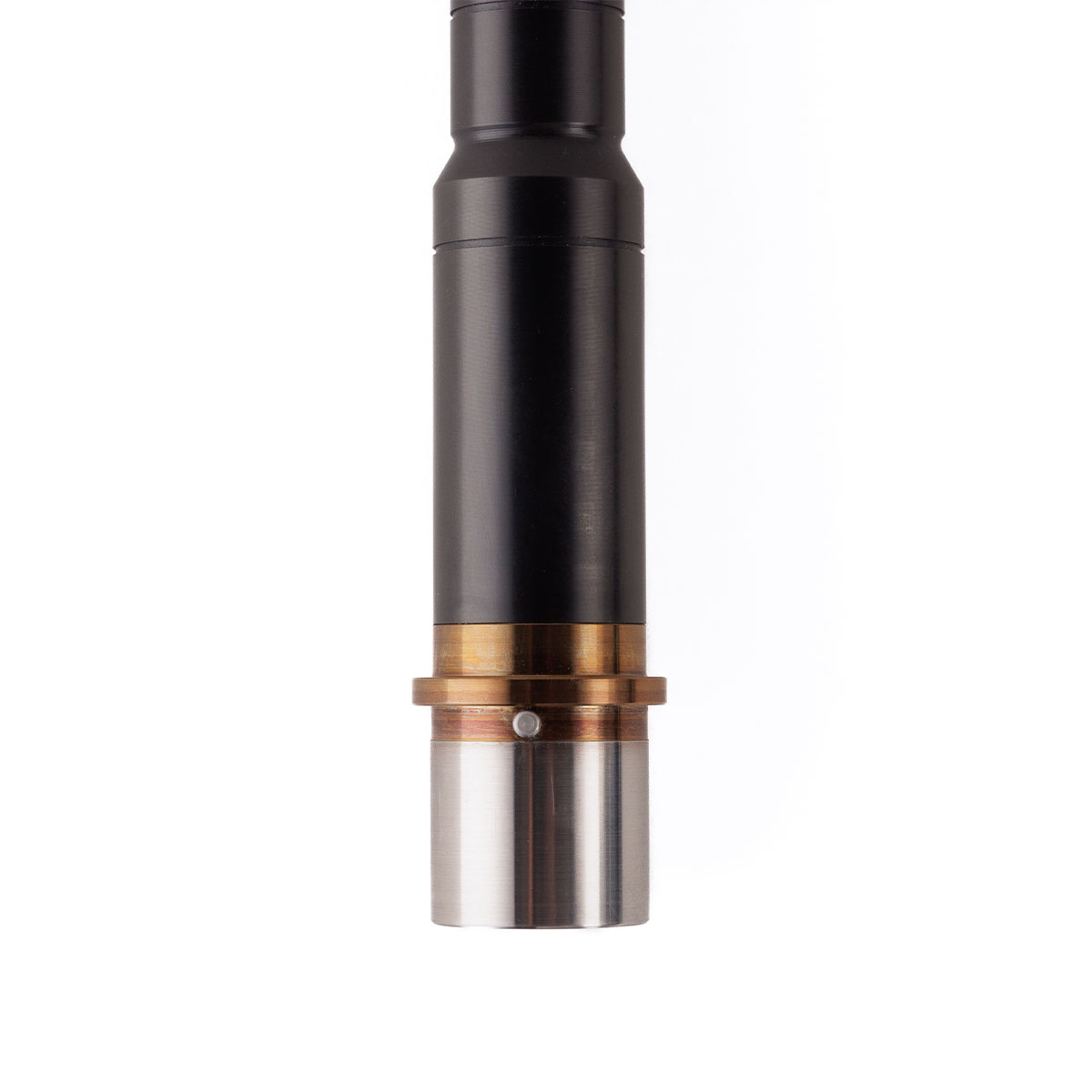

Our barrel extensions are made from 17-4 stainless steel and feature extended thread engagement beyond the mil-spec minimum. This choice of stainless offers superior tensile and yield strength over standard 4140 steel for withstanding higher bolt thrust loads. It is also harder and more wear resistant for better lug geometry over time, and is more corrosion resistant in adverse environments. It also is a beautiful bronze finish when heat treated which is a stand out amongst a sea of black barrel extensions. Our extended thread engagement design increases strength, durability, and concentricity for improve bolt lug engagement symmetry, better torque retention for consistent headspace, and enhanced reliability for high pressure loads.

We wire EDM cut instead of broaching our barrel extension lugs and ramps. EDM achieves tighter tolerances with exacting repeatability and produces perfectly sharp inside corners without exerting cutting forces. This method of manufacturing ensures precise lug engagement and improved headspace control for safety and extended service life.

We polish/burnish by hand every chamber to a mirror finish. This reduces friction between the case and chamber walls for faster extraction and smother feeding, results in more consistent brass expansion and uniform pressure curves for better accuracy and buttery cycling, and it results in a chamber that is more resistant to carbon and brass fouling for easier cleaning.

We use an in-house designed automated hydraulic tool to torque the barrel extension onto our barrels at an exact 150ft-lbs. This offers critical advantages in precision, repeatability, and structural integrity when compared to performing this task by hand. In particular, it ensures headspace consistency, bolt-lug alignment, and bolt-lug integrity, improving bolt-to-barrel fit and chamber pressure consistency across batches.

We do 100% QC on every single barrel for headspace using extension headspace gauges that are replaced at regular intervals. This ensures that every barrel is mechanically safe. We also test fire every complete upper and rifle that leaves our facility and check the casings to ensure proper gassing, cycling, and operation.
